Description
milk powder spray dryer good price spray dryer

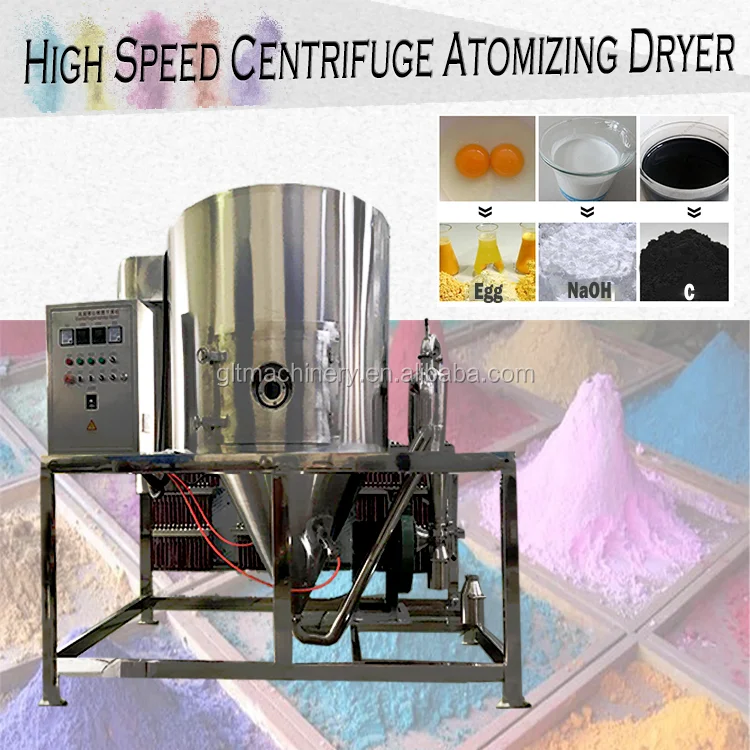

Industrial spray dryer
Description of spray dryer

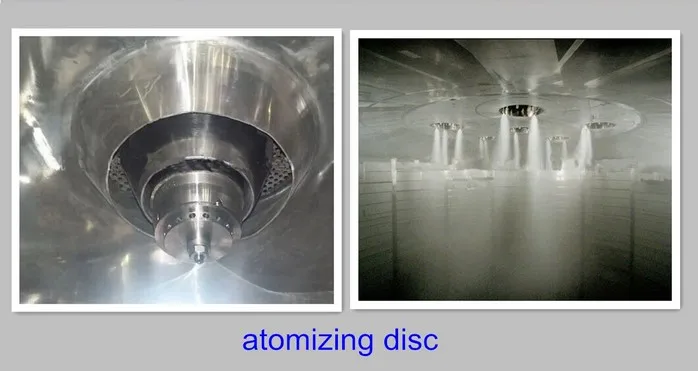

After fresh air is filtered and heated, it enters into the air distributor which on the top of the drier. The hot air in spiral form equably enters into the drying room. When liquid raw material are passed through the high-speed centrifugal sprayer on the top of the tower, it will be rotated and sprayed into the extreme slim mist liquid beads. Raw material can be dried to the final products instantly while it contact with the heatedair. Finished products are discharged continuously from bottom of the drying tower and cyclones segregator. Wasted air is discharged from blower.

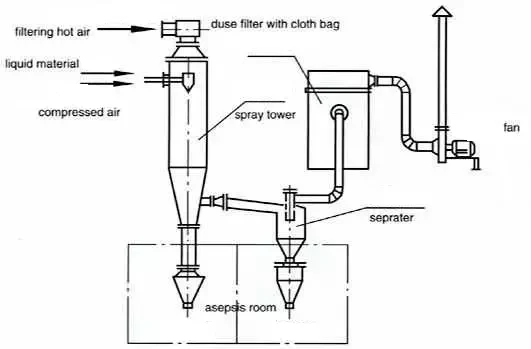

Principle of Spray Dryer
After fresh air is filtered and heated,it enters into the air distributor which on the top of the drier.The hot air in spiral form equably enters into the drying room.When liquid raw material are passed through the high-speed centrifugal sprayer on the top of the tower,it will be rotated and sprayed into the extreme slim mist liquid beads.Raw material can be dried to the final products instantly while it contact with the heatedair.Finished products are discharged continuously from bottom of the drying tower and cyclones segregator.Wasted air is discharged from blower.
Application of spray dryer
Chemical industry
Sodium fluoride (pqtassium), alkaline dyestuff and pigment, dyestuff intermediate, compound fertilizer, formic silicic acid, catalyst, sulphuric acid agent, amino acid, white carbon and so on.
Plastics and resin
AB, ABS emulsion, uric acid resin, phenolic aldehyde resin, urea-formaldehyde resin, formaldehyde resin, polythene, poly chloroprene, etc.
Food industry
Fatty milk powder, protein, cocoa milk powder, substitute milk powder, egg white (yolk), food and plant, oats, chicken juice, coffee, instant sissoluble tea, seasoning meat, protein, soybean, peanut protein, hydrolysate and so forth.
Features of spray drye machine
1.Finished products have high quality and purity, good uniformity,good flow capability and solubility advantages.
2.Simple and stable operation,convenient control and debugging,easy to achieve automatic operation.
3.Drying speed is rapid.When liquid raw material is atomized,the surface of the material will be enlarged greatly.In the hot airflow 95% – 98% of water can be evaporated instantly.time of completing the drying is several seconds.This is especially adapt to dry heating sensitive material.
4.Process of production is simple,it is an ideal choice for liquid material which contains 40%-90% of water and want to dry it to powder once,this type of machine can reduce the procedure of smash and sieve,the operational environment is superior,always clean,and under healthful condition,it also can avoid powder flying while drying.
Technical parameters of spray dryer
| Model | Size | Tower body | Centrifugal spray atomizer | Materail | Heating source |
| GLT-SP-5 | 1600×1100×1750mm | Φ1000mm | Φ50 mm | Electric Steam Gas Coal | |
| GLT-SP-25 | 4000×2700×4500mm | Φ1750mm | Φ80 mm | ||
| GLT-SP-50 | 4500×2800×5500mm | Φ2300mm | Φ120mm | ||
| GLT-SP-100 | 5200×3500×6700mm | Φ2700mm | Φ150mm | ||
| GLT-SP-200 | 7500×6000×8000 | Φ3200mm | Φ150mm | ||
| GLT-SP-1000 | Customized | ||||

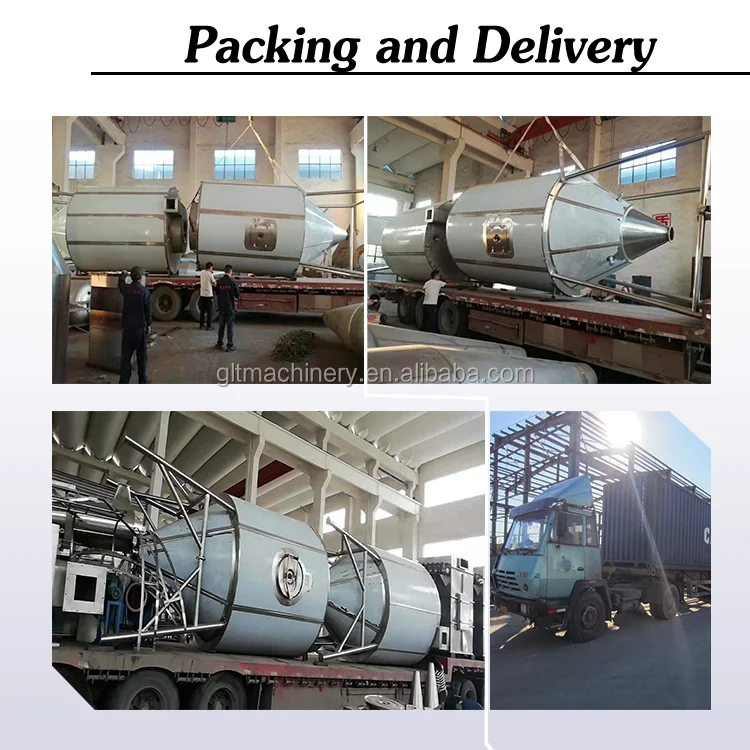

Our products are multi-layered packaging, and finally packed in wooden boxes to ensure that the machine will not be damaged. Customers are very satisfied after receiving the goods, and many customers praise our machine packaging is very professional.
1.Before leaving the factory, all machines must be debugged with materials to reach the normal trial production status, and the goods can be delivered only after the customer’s remote video acceptance (domestic friends or third-party organizations’ on-site acceptance)
2.In addition to providing equipment installation videos for customers, we will set up a service team for customers with afer-sales needs, including the company’s manager, sales manager,engineers, customers and other relevant personnel, so that customers can answer any questions at any time.’ These online guidance services are completely free.
Great Machinery Equipment (zhengzhou) Co., Ltd.
2007 sees the company growth and its business scope enlarge from drying machine to a complete production line, such as washing machine, cutting machine, and packaging machine. sales and service with total investment of 5 hundred million . We mainly supply a whole production chain of closely related machines, including, cleaning machine, stripping machine, drying machine and packing machine.
1.Can I use this machine to extract some raw materials?
Yes, in order to help you better, we suggest you provide the name of the raw material you want to process.
2.Can I use my own raw materials for extraction test?
Yes, of course. We can do extraction tests and send videos and test reports for your reference.
3.Do you have OEM service? Do you provide parts?
Yes, we will, as long as you provide us with your drawings and detailed requirements.
4.How can we visit your factory?
You can fly to Zhengzhou airport, or if you arrive in Shanghai, you can tell us your specific location. We will arrange a driver to pick you up.
5.How to transport equipmen?
We usually choose sea transportation. Laboratory models can be shipped by air according to customer requirements.
6.What is the voltage of the equipment?
The equipment voltage is 380V, if the user requires 220V, the specific can be customized according to the voltage standard of the country where your equipment is used.
7.what is your after-sales service?
We provide the English manual of the equipment manual. If you need, we will send an engineer to install and train workers.
